Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

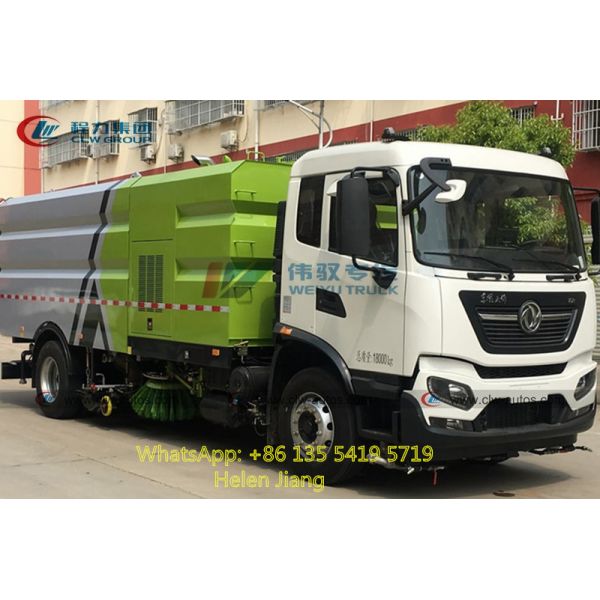

Dongfeng Tianjin 4x2 8 Ton Road Washing Truck

Brand Name : CLW

Model Number : CLW20210812

Certification : CCC, ISO9001, BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 units

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 35-40 working days

Packaging Details : Naked waxed before delivery

Product Name : Road Sweeper Truck, High Pressure Road washing

Truck Chassis Brand : JMC, DONGFENG, HOWO, FAW other China brand

Dustbin Capacity : 3m3, 5cbm, 7m3, 8m3, 12m3

Body Type : Vacuum Sweeper Sweep Sweeping Suction

Road Sweeper Tank Shape : Round, Square

Truck Type : Water Praying Sweeper Tank, Street Cleaning

Drive Type : Right Hand Drive, Left Hand Drive

Drive Model : 4X2, 6-Wheeler. 6X4, 10 Wheeler

Clean Water Tank : 8m3, 9m3, 8000liters. 8cbm

Specification : 6000L, 8000L, 10000L, small sizes

After-sales service provided : Video technical support,Engineers available to service machinery overseas,Online support,Field maintenance and repair service,Overseas third-party support available

Warranty : 1 Year,12 Months

Key word : Road Sweeper Truck,road/electric sweeper,road cleaning vehicle

Application : Street Cleaning,airport,Outdoor,Sweeping the road

Power : 125 kw/170 hp

Cleaning width : 3.4M,1600mm

Contact Now

Dongfeng Tianjin 4X2 8Tons Road Spraying Washing Sweeper Truck

Features
1. Four sweeper brush and sucker for sweeping combination with excellent sweeping ability
2. each side of the broom or brush can work at the same time, or work independently on each side
3. cleaning device mechanism is simple and reliable, which is hard to damage;
4. all stainless steel dust bins, water tanks,
5. hydraulic system core components are all imported;
6. cleaning system powered by auxiliary engine, which do not interfere with vehicle power.

Road Sweeper (sweeper truck) is one of the sanitation equipments. It is a new type of high-efficiency sweeping equipment integrating road sweeping, garbage recycling and transportation. It can be widely used in road highways, municipal and airport roads, urban residential areas, parks and other roads. Pavement sweepers not only clean trash, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the sanitation of the environment, but also maintains the good working conditions of the road surface, and reduces and prevents traffic accidents. The occurrence and further extend the life of the road. It has become a trend to use pavement sweepers for road maintenance in China.

The road sweeper is a special sanitation vehicle equipped with a sweeping brush and other cleaning systems. It is mainly used for sweeping operations in large and medium-sized urban sanitation departments. Road sweepers have greatly liberated the work intensity of sanitation workers, increased work efficiency, and reduced secondary pollution such as dust.

Specification for Road Sweeper ttruck:

Description Specification
Automotive chassis Model,categoryand manufacturer of chassis DFL1160BX4
Model and manufacturer of engine CUMMINS 190HP
Rated power of engine 141kW/2600r/min
Tire Front wheel 9.00R20 steel wire tire
Rear wheel 9.00R20 steel wire tire
Fuel type

Diesel meeting the discharge requirements in the fifth stage,

select an appropriate diesel grade according to the temperature

Auxiliary engine Standard configuration Model and manufacturer

EQ6BT5.9 or

QSB5.9-C160-30(Standard China)

Power 118kw/2500r/min;120kw/2200r/min
Clutch Single plate, dry type and diaphragm spring
Fan Type Special high-pressure centrifugal fan
Mode of transmission Narrow V belt drive
Hydraulic system Type Open type, EHC and centralized control
Main elements Gear pump, gerotor motor, hydraulic cylinder, solenoid valve, integrated package, etc.
Overflow pressure 14MPa
Hydraulic oil capacity 60L
Electrical system Control mode PLC control + manual control, voice alarm, electromechanical liquid interlocking, etc.
Chassis system voltage 24V
Working device system voltage 12V
Model of storage battery Chassis: 12V-70A.H (2 pieces connected in parallel)
High-pressure cleaning system High-pressure water pump Type Plunger type
Model Italian Pratissoli KEB36R
Rated pressure 10MPa
System working pressure 9MPa
Rated flow 80L/min
Rated speed 1150r/min
Water valve and control Type of water valve High-pressure stainless steel ball valve, 10MPa
Control mode Oil cylinder drive, electrical control
Type of nozzle of water spray rod High-pressure washing type
Dust falling system of sweeping plate Electric water pump and watering nozzle; water filter and water tank shared with the high-pressure cleaning system

Sweeping system
Type Two vertical sweeping plates are symmetrically arranged between the front shaft and the rear shaft of the chassis and on both sides of the frame, which are driven by a hydraulic motor. The revolving speed of sweeping plate is adjustable. The left and right vertical sweepers can be independently lifted.
Diameter of sweeper Φ850mm
Speed of sweeping plate High gear (normal operation gear): 110r/min; intermediate gear: 80r/min; low gear: 60r/min
Adjustment to dip angle of sweeping plate Front inclination: 4°-6°; outward inclination: 2°-4°
Suction nozzle Type Double suction ports, built-in long spray lance with a high-pressure nozzle, the body of suction nozzle moves with the pavement. Lifting of the suction nozzle is controlled by the oil cylinder. A spring is used for floating suspension.
Diameter of sucker Φ180mm
Ground clearance of suction nozzle during working 5~10mm
Left & right spray lance Pendulum angle of spray lance 65°
Nozzle ground clearance 340mm
Total number of nozzles 8pcs
Detailed Images

More pictures for Road Washing Street Cleaning Sweeper:

Dongfeng Tianjin 4x2 8 Ton Road Washing TruckDongfeng Tianjin 4x2 8 Ton Road Washing TruckDongfeng Tianjin 4x2 8 Ton Road Washing TruckDongfeng Tianjin 4x2 8 Ton Road Washing TruckDongfeng Tianjin 4x2 8 Ton Road Washing TruckDongfeng Tianjin 4x2 8 Ton Road Washing Truck

ChengLi Special Automobile Corporation Limited, The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.

  • Certificate: ASM, ISO, BV, SGS, CCC etc.
  • 12 independents workshops.
  • 1000 sets of equipment, 25 assemble lines.
  • 300 senior engineers and technicians. About 8000 workers.
  • 800kinds of LPG, trucks and semi-trailers.
  • 20 years wholesale experience
  • Turnover 250 million and Export 20million annually
  • Turnover 2 billion trucks and semi-trailers annually.
  • LPG/Truck Sold to 90 countries
  • Cooperates DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC
