Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

Brand Name : CLW

Model Number : clw5312gx43

Certification : ISO, CCC

Place of Origin : Suizhou,China

MOQ : 1 UNIT

Price : 12250-48620USD/UNIT

Payment Terms : L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 300units/month

Delivery Time : 30 days after received advance payments

Packaging Details : Naked package shipped by bulk ship

Truck brand : Shacman,Sinotruk howo,CAMC,FAW,ISUZU fuel truck

Drive model : 4x2, 6x4, 8x4, 6*4, 4*2,8*4 fuel truck

Tank volume : 25000liters,25000L,30000L,30000liters,35000Liters fuel truck

Fuel type : Diesel/gasoline/oil

Condition : new

Transmission type : 10 speed forward and 2-reverse

Horsepower : 336hp,371hp

Tank material : Carbon Steel, Q235 Carbon Steel/ Stainless Steel, Carbon Steel/stainess steel/aluminum alloy, aluminum alloy, aluminum 5083

Product name : Fuel Tanker Truck, fuel delivery truck,Fuel Tank Truck,howo fuel truck

Emission standard : Euro2/3/4/5

Wheelbase : 1800+4600+1350

Contact Now

Sinotruk HOWO 8X4 336HP 24cbm 30cbm Fuel Tanker Truck Diesel Transport Truck

Description:
1. Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3. High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
4. Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6. Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
7. Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
8. Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Specifications

General Technical Parameters
Overall Dimension	11984×2500×3280(mm)		Gross Vehicle Weight	50000(kg)
Curb Weight	14500(kg)		Loading Weight	35500(kg)
Chassis Specification
Chassis Parameters	Chassis Brand		SINOTRUK HOWO
	Cabin		Row and half, Left Hand Driving
	Engine	Power	336HP
		Emission standard	EURO II
		Displacement	9.726L
		Fuel type	Diesel
	Gearbox		10 Forward & 2 Reverse Gear
	Front and Rear Axle load		9T/16T
	Wheel Base		1800+4600+1350(mm)
	Brake System		Pneumatic
	Steering Gear		Power Assistant
	Tire		12.00R20, 12 Pieces
	Maximum speed		80(km/h)
Tank Body
Shape	Monoblock Cylinder
Total Volume(m3)	24-30m3
Tanker Body Material	5mm carbon steel
Manhole Cover	∮500mm ,1 set with 1 breather valve
Bottom Valve	1 set
Discharging Valve	1 set ∮80mm discharging valve
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories	One standard tool box

Reference pictures

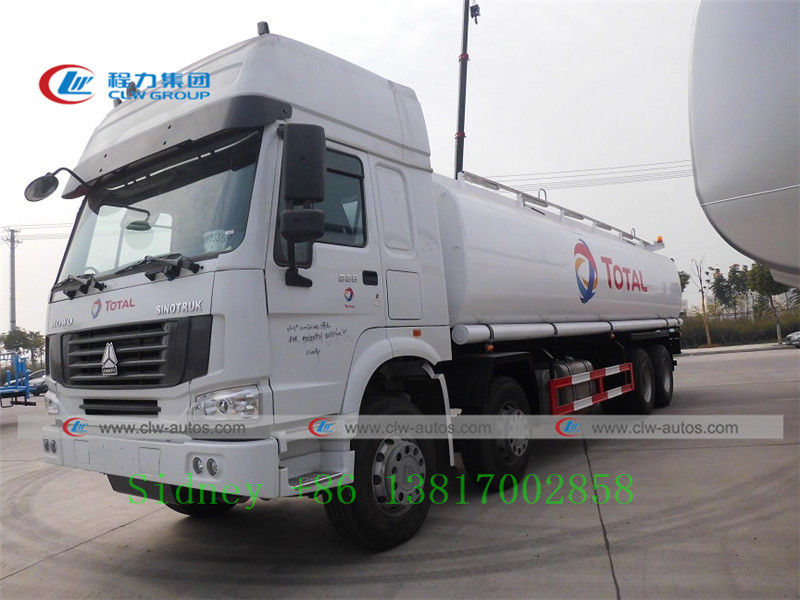

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck

Customer visiting

Sinotruk Howo 8X4 336HP 24cbm 30cbm Fuel Tanker Truck
