Dongfeng Tianjin 4x2 8000L Water Tank Fire Rescue Truck

Brand Name : CLW

Model Number : CLW5160SSKWX

Certification : CCC,SGS,BV

Place of Origin : SUIZHOU,CHINA

MOQ : 1 Unit

Price : 31850~38650 usd/unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 units/month

Delivery Time : 30 days after receiving deposit

Packaging Details : naked,waxed,bulk ship,ro-ro

Truck Chassis : ISUZU/Dongfeng/Howo Water sprinkler Fire Truck

Capacity : 8tons 8t Water sprinkler Fire Truck

Type : water tank fire truck,foam,dry powder Water sprinkler Fire Truck

Fire Pump : CB10/30 Water sprinkler Fire Truck

Flow rate of pump : 30m Water sprinkler Fire Truck

Steering : LHD/RHD Water sprinkler Fire Truck

Engine type : Diesel engine Water sprinkler Fire Truck

Horsepower : 180HP Water tank Fire Truck

Water Tanker Size : 8000liters 8m3 8000L Water sprinkler Fire Truck

Water tank material : Carbon steel/Stainless steel Water sprinkler Fire Truck

Wheelbase : 3950mm

Emmission : Euro III/IV/V

Contact Now

8000L 8cbm 8ton Dongfeng TianJin 4x2 Water tank Fire rescue truck

Product Description

Water sprinkler Fire Truck(Also called water bowser fire truck,water sprinkling fire fighting truck) is a simpflied water tank fire truck combined water sprinkler function and fire fighting function. Equipped with fire pump,the water sprinkler truck can be used as fire rescue in emergency,or it can also used as sanitation city cleaning water sprinkler truck.

1) Cabin: Flat Metal enclosed cab, panoramic curved windshield. Optional front bumper, front combination lamps, doors and windows, front under cover；
2)Tank: High quality carbon steel Q235A,Welded structure, equipped with vertical and horizontal anti-oscillation plates, with high-tech anti-corrosion treatment, and optional stainless steel materials;
3) Pump room: pump located in middle and rear at truck,high strengh aluminum alloy rolling door at two sides of pump room and equipment room.
4) Equipment box: It is made of aluminum alloy profile built-in tower connection technology produced by European technology, fully riveted structure, and aluminum alloy rolling shutter door.
5)Electrical configuration: There are long rows of warning lights at the front of the top of the cab, and a 24V/60W fire field lighting is equipped at the rear of the body. The top of both sides of the vehicle are equipped with matching red and blue flashing lights, safety indicator lights are installed below, and lighting lights are installed in the passenger room, equipment room, and pump room. 100W alarms, rotating warning light switches, and communication equipment are installed. interface.

Specification of 8cbm Dongfeng TianJin 4x2 Water tank Fire rescue truck

Description	Parameters
Overall Dimension(mm)	8250×2480×3310
Tank Dimension (mm)	3060×1450×1340
GVW	15550kg
Engine Model	B180 40
Type	Vertical six cylinder, water cooled four stroke, supercharged medium cooling, electric controlled high pressure common rail engine
Engine Power	132kW/180HP
Wheelbase	4700mm
Driving Type	4X2
Front/Rear overhang(mm)	1430/2070
Axle load(Kg)	5750/9800
Max.speed	90km/h
Gear Box	5 forward speed range gearbox, one reverse speed.
Emission Standard	5900 ml
Communication	FM/AM radio With USB, Optional VHF radio with Microphone
Tires	10.00-20,10.00R20,9.00-20,9.00R20,275/80R22.5 16PR
Passengers	2+4
Fire pump rated flow	60L/s@1.0Mpa;
water monitor rated flow	48-64L/s
Water monitor range	Water range≥60m,foam≥55m
Approach angle	20°
Departure angle	13°
Water tank capacity	8CBM
Fire pump model	CB10/60
Pressure gauge	0-1.6 Mpa, 0-2.5 MPa
Water monitor	PL48

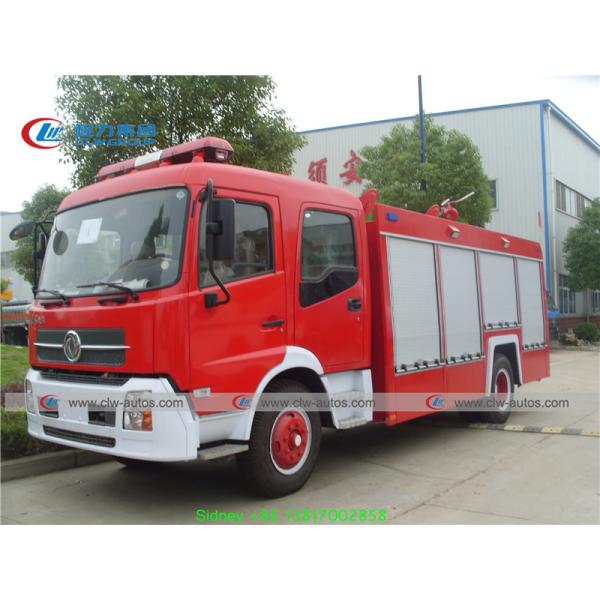

Reference photos

Dongfeng Tianjin 4x2 8000L Water Tank Fire Rescue Truck

Other Water Sprinkler Fire Truck with different truck brands and tanker capacity

Why do you choose CLW group for dongfeng Water Tank Fire Truck?

Experience
More than 16 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce truck according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
Good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale
More than 8000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.

Quick feedback to solve your questions
Professional engineering and production team

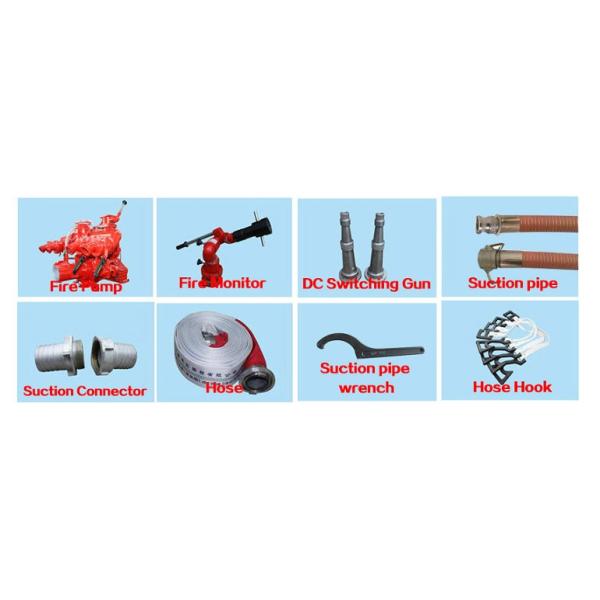

Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of fire fighting truck I can order from your company?

A: There are various sizes and types of fire fighting trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied fire fighting trucks to any overseas companies?

A: Yes,with need of government project,we offered fire fighting trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
